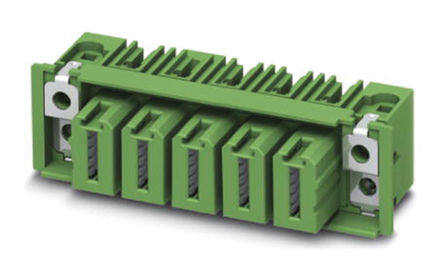

1784994 image
Favorite
1784994 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON DFK-IPC RoHS Compliant 2012 Mating and Mounting Flange Terminal Block Header, Blade Sockets 90° Right Angle 115A 600V 1.185 30.10mm
PDF
/
Inventory: 1086
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)

Technical

Packaging Bulk
Published 2012
Series COMBICON DFK-IPC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Blade Sockets
Color Green
Voltage - Rated 1kV
Pitch 0.591 15.00mm
Insulation Height 1.185 30.10mm
Reach Compliance Code not_compliant
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.181 4.60mm
Number of Levels 1
Current 115A
Voltage - UL 600V
Header Orientation 90°, Right Angle
Current - IEC 125A
Number of Positions Per Level 5

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
