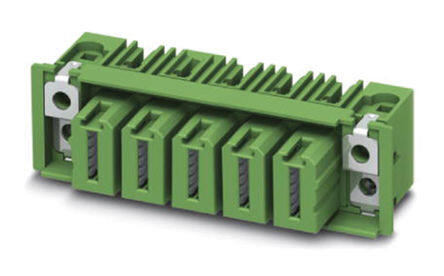

1784965
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 15mm pitch Feed Thru Invert Hdr
PDF
/
Inventory: 1143
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 2
Current - IEC 125A
Header Orientation 90°, Right Angle
Voltage - UL 600V
Current 115A
Number of Levels 1
Contact Tail Length 0.181 4.60mm
Voltage 600V
Termination Style Solder
Current Rating 76A
Reach Compliance Code not_compliant
Insulation Height 1.185 30.10mm
Pitch 0.591 15.00mm
Voltage - Rated 1kV
Color Green
Type Header, Blade Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON DFK-IPC
Published 2014
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 7 Weeks
