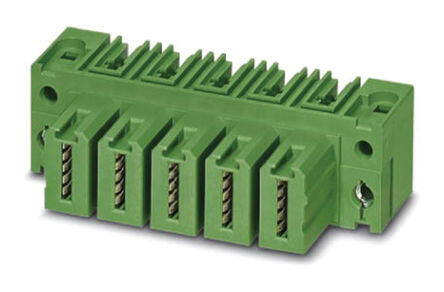

1784952
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 15mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 9308
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2012
Series COMBICON IPC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Blade Sockets
Number of Positions 6
Color Green
Voltage - Rated 1kV
Pitch 0.591 15.00mm
Orientation Right Angle
Depth 44.9mm
Insulation Height 1.122 28.50mm
Reach Compliance Code not_compliant
Current Rating 125A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.181 4.60mm
Max Current Rating 125A
Number of Levels 1
Current 115A
Voltage - IEC 1kV
Header Orientation 90°, Right Angle
Number of Positions Per Level 6
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
