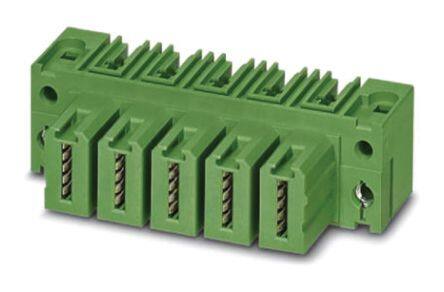

1784949
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 15mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 1142
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 99.4mm
Technical
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Voltage - IEC 1kV
Current 115A
Number of Levels 1
Max Current Rating 125A
Contact Tail Length 0.181 4.60mm
Voltage 600V
Termination Style Solder
Current Rating 125A
Reach Compliance Code not_compliant
Insulation Height 1.122 28.50mm
Depth 44.9mm
Orientation Right Angle
Pitch 0.591 15.00mm
Voltage - Rated 1kV
Color Green
Number of Positions 5
Type Header, Blade Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON IPC
Published 2012
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 7 Weeks
