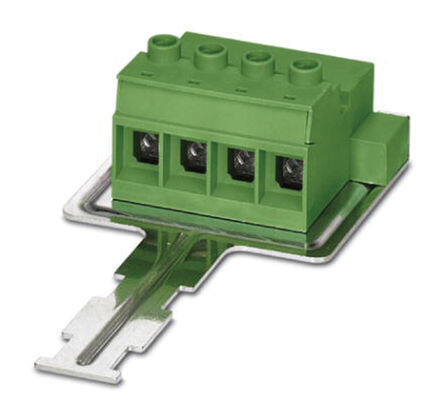

1784907 image
Favorite
1784907 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 15mm Invert Plug 20-2AWG Screw
PDF
/
Inventory: 1131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M5
Number of Positions Per Level 4
Current - IEC 125A
Wire Strip Length 20mm
Wire Gauge or Range - mm2 0.5-35mm2
Plug Wire Entry 180°
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Wire Gauge or Range - AWG 2-16 AWG
Voltage - UL 600V
Contact Mating Finish Silver
Wire Gauge (Min) 2 AWG
Wire Gauge (Max) 16 AWG
Current 115A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 125A
Reach Compliance Code not_compliant
Depth 42.5mm
Pitch 0.591 15.00mm
Voltage - Rated 1kV
Gender Female
Color Green
Type Plug, Blade Pins
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Strain Relief
Series COMBICON IPC
Published 2012
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
