1784897
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

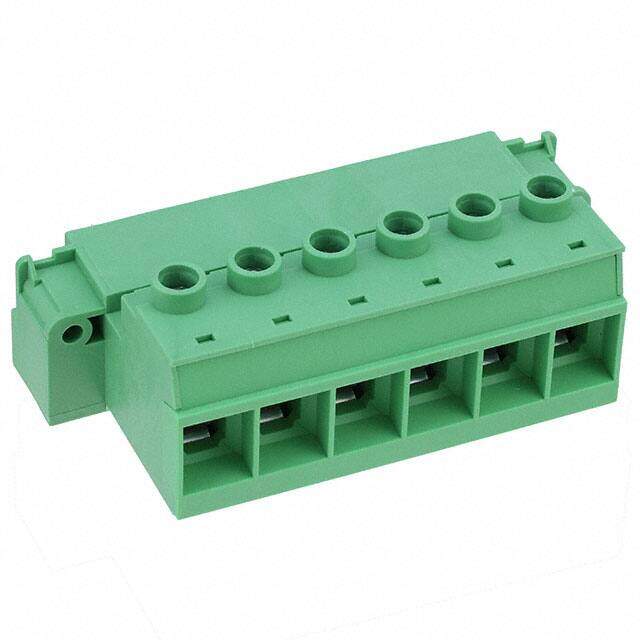

Pluggable Terminal Blocks 6 Pos 15mm Invert Plug 20-2AWG Screw
PDF
/
Inventory: 1197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 58mm
Technical
Screw Size M5
Number of Positions Per Level 6
Current - IEC 125A
Wire Strip Length 20mm
Wire Gauge or Range - mm2 0.5-35mm2
Plug Wire Entry 180°
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Wire Gauge or Range - AWG 2-16 AWG
Voltage - UL 600V
Contact Mating Finish Silver
Wire Gauge (Min) 2 AWG
Wire Gauge (Max) 16 AWG
Current 115A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 125A
Reach Compliance Code not_compliant
Insulation Height 1.642 41.70mm
Depth 40mm
Pitch 0.591 15.00mm
Voltage - Rated 1kV
Gender Female
Color Green
Type Plug, Blade Pins
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IPC
Published 2013
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
