1784842
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

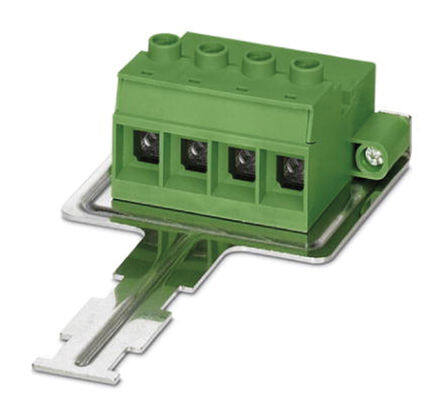

COMBICON IPC RoHS Compliant 2012 Mating Flange Strain Relief Terminal Block Plug, Blade Pins 2AWG 180° 115A 600V
PDF
/
Buying Options
Total Price: USD $74.6
Unit Price: USD $74.601604
≥1 USD $74.601604
≥200 USD $28.870671
≥500 USD $27.855799
≥1000 USD $27.354272
Inventory: 1095
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON IPC
Feature Mating Flange, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Blade Pins
Color Green
Gender Female
Voltage - Rated 1kV
Pitch 0.591 15.00mm
Depth 42.5mm
Current Rating 125A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 115A
Wire Gauge (Max) 2 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Wire Gauge or Range - AWG 2-16 AWG
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-35mm2
Wire Strip Length 20mm
Current - IEC 125A
Number of Positions Per Level 4
Screw Size M5
Dimensions
Length 58mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
