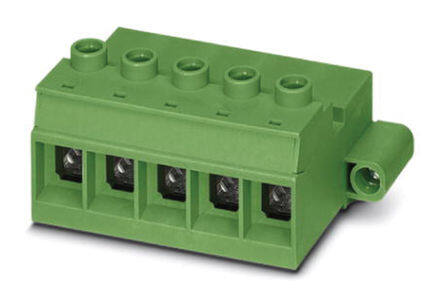

1784790
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 15mm Invert Plug 20-2AWG Screw
PDF
/
Buying Options
Total Price: USD $18.88
Unit Price: USD $18.877152
≥1 USD $18.877152
≥10 USD $17.808643
≥100 USD $16.800602
≥500 USD $15.849623
≥1000 USD $14.952469
Inventory: 4629
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON IPC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Blade Pins
Color Green
Gender Female
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Pitch 0.591 15.00mm
Depth 40mm
Insulation Height 1.642 41.70mm
Current Rating 125A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 115A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 2 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Wire Gauge or Range - AWG 2-16 AWG
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-35mm2
Wire Strip Length 20mm
Current - IEC 125A
Number of Positions Per Level 2
Screw Size M5
Dimensions
Length 58mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
