1784299
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

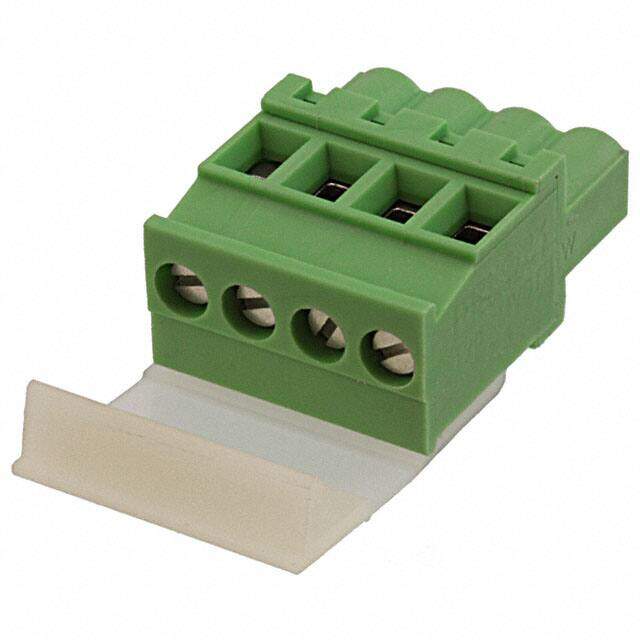

Pluggable Terminal Blocks MVSTBW 2 5/ 4-STEH
PDF
/
Buying Options
Total Price: USD $4.49
Unit Price: USD $4.488
≥1 USD $4.488
Inventory: 151
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 40.7mm
Length 13.6mm
Height 19.95mm
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Number of Ways 4
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Voltage 250V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Green
Number of Positions 4
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Release Lever
Series COMBICON MVSTBW
Published 2010
Packaging Bulk
Physical
Weight 1.59982kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
