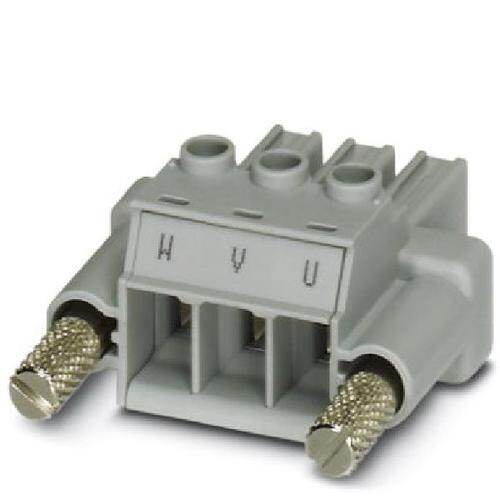

1783445
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 3POS STR 7.62MM
PDF
/
Inventory: 7814
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON PC
Feature Mating Flange, Positions Stamped
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 3
Color Gray
Pitch 0.300 7.62mm
Insulation Height 0.776 19.70mm
Termination Style Screw - Rising Cage Clamp
Housing Color Grey
Voltage 600V
Number of Levels 1
Current 41A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
