1782556
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

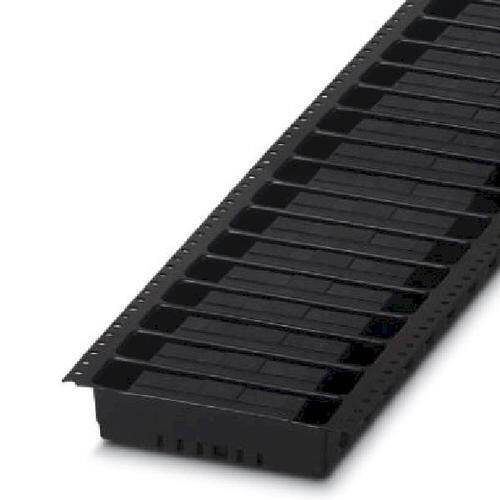

Pluggable Terminal Blocks 11 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $11.27
Unit Price: USD $11.265995
≥1 USD $11.265995
≥200 USD $4.49537
≥470 USD $4.345699
≥940 USD $4.270864
Inventory: 1139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2014
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0, LOW PROFILE
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.272 6.91mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 11
Safety Approval CUL; GOST; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
