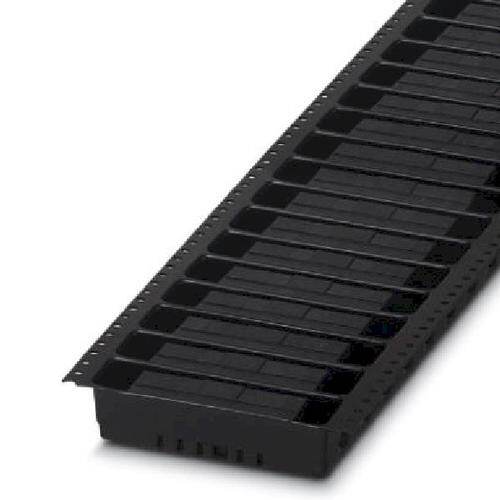

1782491
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1170
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 20.14mm
Technical
Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval CUL; GOST; UL
Number of Ways 5
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.272 6.91mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.150 3.81mm
Additional Feature UL 94V-0, LCP
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2012
Packaging Tape & Reel (TR)
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
