1782378
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

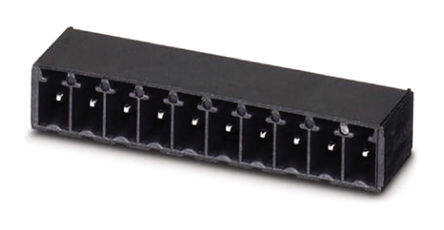

COMBICON MC RoHS Compliant 2014 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 8A 300V 0.272 6.91mm
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.5664
≥1 USD $1.5664
≥10 USD $1.49864
≥100 USD $1.457632
≥500 USD $1.36224
≥1000 USD $1.253261
≥3000 USD $1.2298
Inventory: 67
Minimum: 1
-
+
Technical Details
Technical
Voltage - UL 300V
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 4
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.055 1.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.272 6.91mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2014
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
