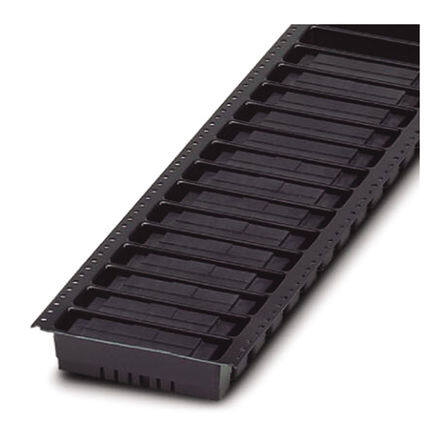

1782161
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $9.81
Unit Price: USD $9.809989
≥1 USD $9.809989
≥200 USD $3.915068
≥470 USD $3.783778
≥940 USD $3.719446
Inventory: 1223
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2014
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.272 6.91mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.055 1.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
