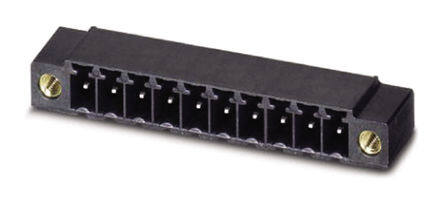

1781900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2014
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Straight
Insulation Height 0.272 6.91mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.055 1.40mm
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 12
Dimensions
Length 9.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
