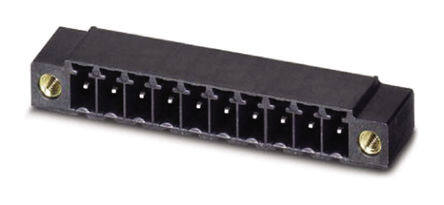

1781858
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MC RoHS Compliant 2014 Mating Flange Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 8A 300V 0.272 6.91mm
PDF
/
Inventory: 1125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2014
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.272 6.91mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.055 1.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 7
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
