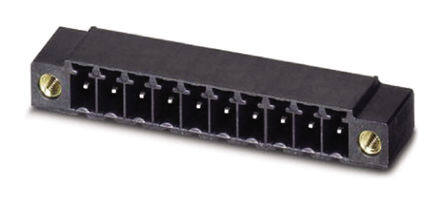

1781832
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.055 1.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.272 6.91mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MC
Published 2014
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
