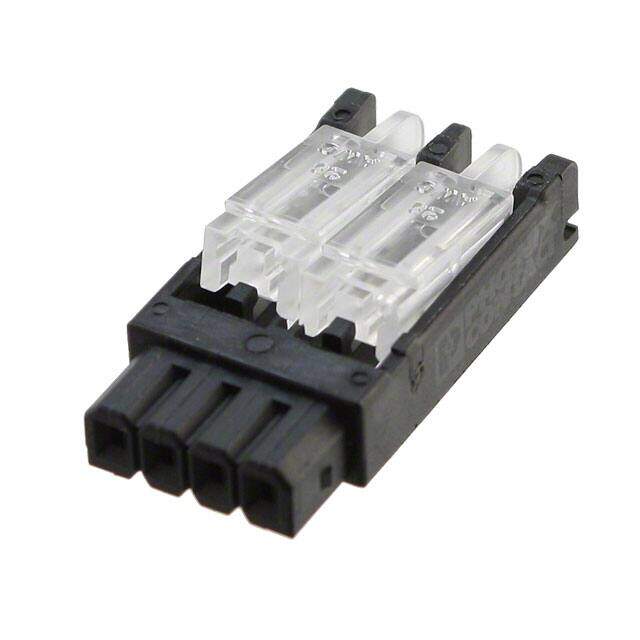

1780480
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
CONN PLUG 2A IDC 4POS 2.5MM
PDF
/
Inventory: 1102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide
Technical
Packaging Bulk
Published 2010
Series COMBICON HD
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type IDC, IDT, Plug, Socket
Type Plug, Female Sockets
Color Black
Voltage - Rated 160V
Fastening Type Friction
Pitch 0.098 2.50mm
Orientation Straight
Current Rating 2A
Termination Style IDC
Max Current Rating 2A
Wire/Cable Type Discrete
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 26 AWG
Number of Poles 4
Wire Gauge or Range - AWG 26 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14mm2
Dimensions
Height 5mm
Length 24.5mm
Width 11.9mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
