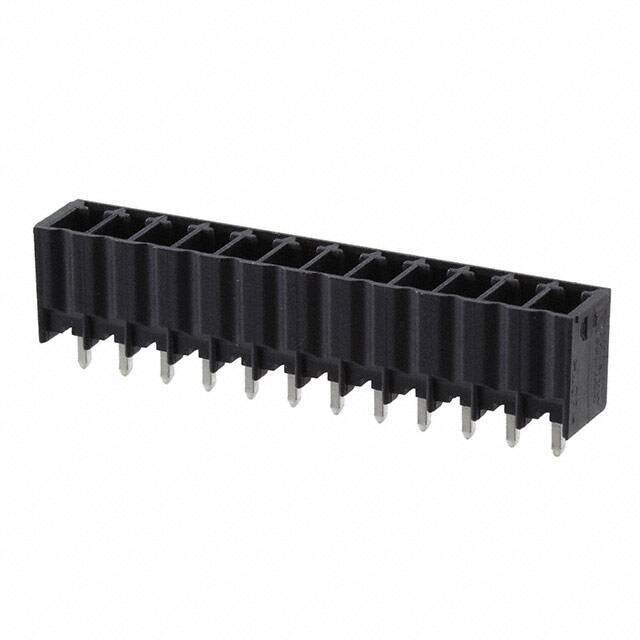

1780406
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MCV RoHS Compliant 2014 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 8A 300V 0.362 9.20mm
PDF
/
Inventory: 1092
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 12
Header Orientation Vertical
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.055 1.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MCV
Published 2014
Packaging Tape & Reel (TR)
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
