RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

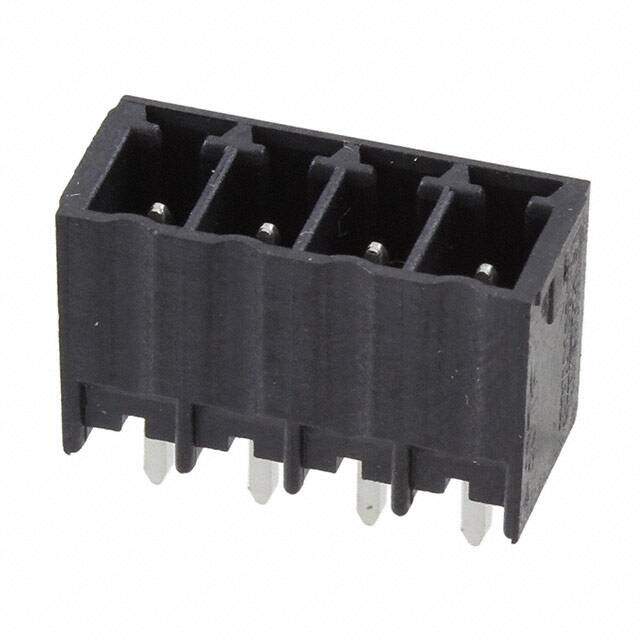

Description Pluggable Terminal Blocks 4 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.809119
≥1 USD $1.809119
≥10 USD $1.706713
≥100 USD $1.610112
≥500 USD $1.518971
≥1000 USD $1.432987
Inventory: 2437
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Bulk
Published 2014
Series COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.055 1.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 250V
Header Orientation Vertical
Number of Positions Per Level 4

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
