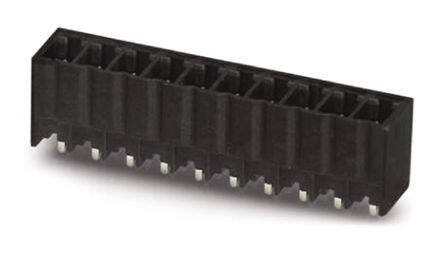

1780192
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8531
≥1 USD $0.8531
≥10 USD $0.804805
≥100 USD $0.759256
≥500 USD $0.716278
≥1000 USD $0.675726
Inventory: 5224
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 2
Header Orientation Vertical
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.055 1.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MCV
Published 2014
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
