1780118
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

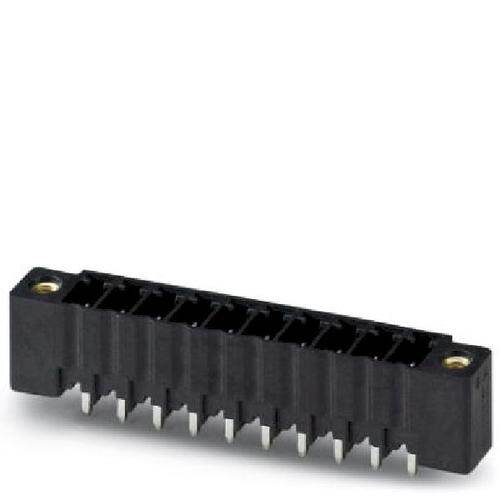

COMBICON MCV RoHS Compliant 2014 Mating Flange Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 8A 250V 0.362 9.20mm
PDF
/
Inventory: 1106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Voltage - IEC 250V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Termination Style Solder
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Color Black
Number of Positions 11
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MCV
Published 2014
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
