1779990
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

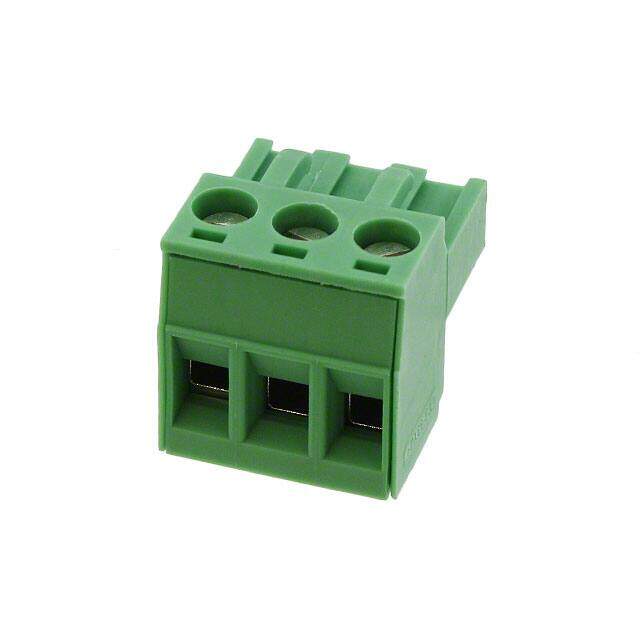

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $3.86
Unit Price: USD $3.8632
≥1 USD $3.8632
≥10 USD $3.75408
≥100 USD $3.50856
≥500 USD $3.227928
≥1000 USD $3.167437
Inventory: 308
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 129.999998g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 3
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Height 15.24mm
Length 15.24mm
Width 18.2mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
