1779983
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

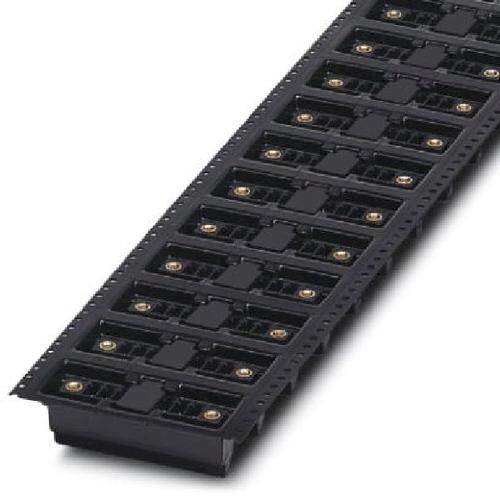

Pluggable Terminal Blocks 4 Pos 3.5mm pitch Through Hole Header
PDF
/
Inventory: 1125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2014
Series COMBICON MCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.055 1.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
