1779903
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

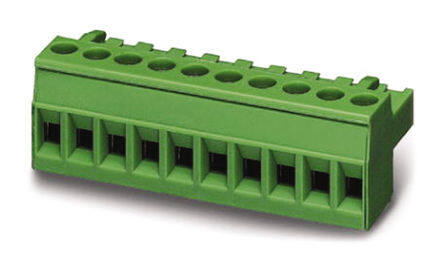

Pluggable Terminal Blocks 9 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Inventory: 8509
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 9
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Length 45mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
