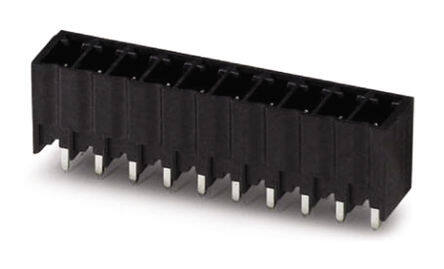

1779543
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.55
Unit Price: USD $4.5496
≥1 USD $4.5496
≥10 USD $4.42552
≥100 USD $4.136
≥500 USD $3.80512
≥1000 USD $3.5156
≥3000 USD $3.429237
Inventory: 109
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 39.9mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 11
Header Orientation Vertical
Safety Approval CUL; GOST; UL
Number of Ways 11
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 6.9mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MCV
Published 2014
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
