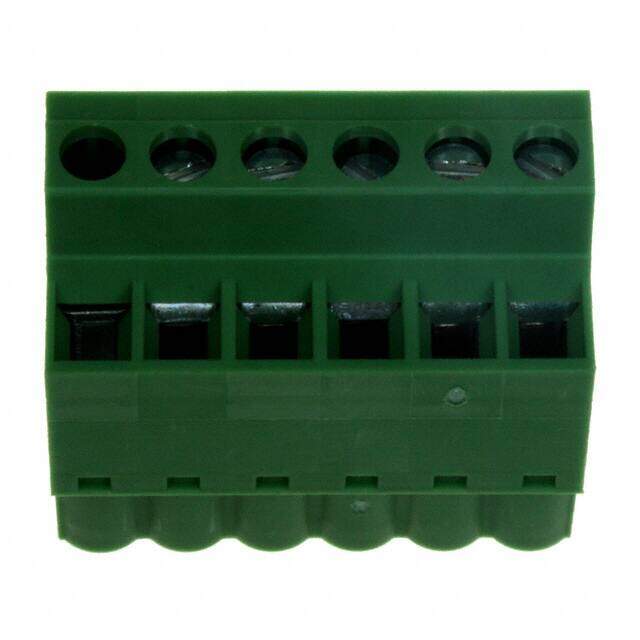

1779453
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS STR 5MM
PDF
/
Inventory: 6350
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 2.5 mm2
Screw Size M2.5
Number of Positions Per Level 6
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 6
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Pressure Clip
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Additional Feature POLYAMIDE, 94V-0
Voltage - Rated 250V
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON FRONT-MSTB
Published 2010
Packaging Bulk
Physical
Weight 749.788188g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
