1779446 image
Favorite
1779446 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

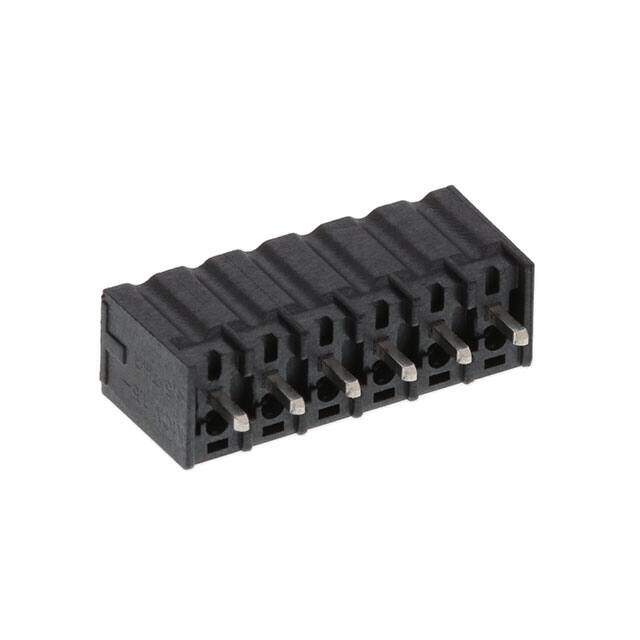

Description Pluggable Terminal Blocks 6 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.98
Unit Price: USD $2.984593
≥1 USD $2.984593
≥10 USD $2.815657
≥100 USD $2.656275
≥500 USD $2.505927
≥1000 USD $2.36408
Inventory: 944
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 6
Header Orientation Vertical
Safety Approval CUL; GOST; UL
Number of Ways 6
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MCV
Published 2014
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
