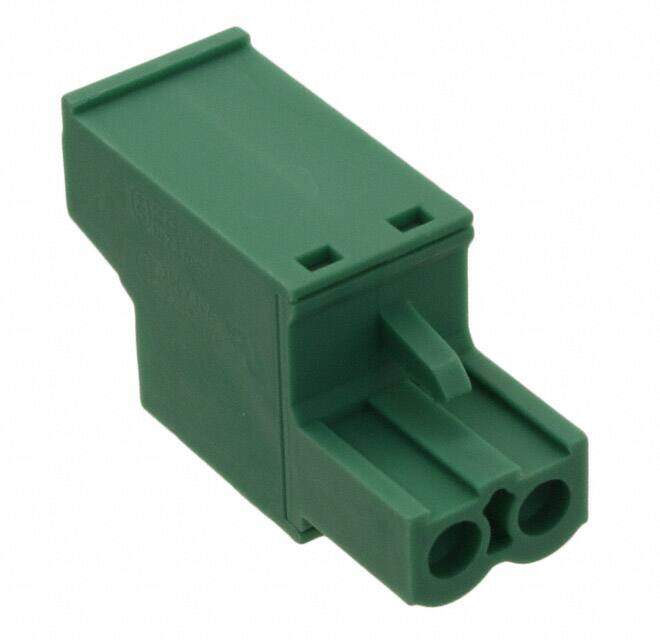

1779411
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 5MM
PDF
/
Buying Options
Total Price: USD $4.34
Unit Price: USD $4.3384
≥1 USD $4.3384
≥10 USD $4.22048
≥100 USD $3.94416
≥500 USD $3.62868
≥1000 USD $3.560691
Inventory: 347
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 6.128005g
Technical
Packaging Bulk
Published 2011
Series COMBICON FRONT-MSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Gender Female
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 15mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw - Pressure Clip
Number of Contacts 2
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Screw Size M2.5
Dimensions
Height 15mm
Length 10mm
Width 27.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
