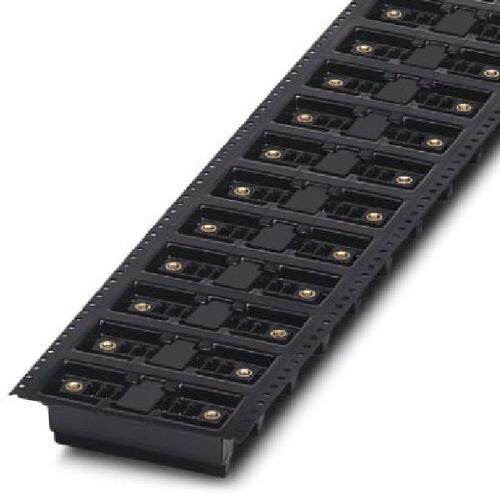

1779239 image
Favorite
1779239 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON MCV RoHS Compliant 2014 Mating Flange Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 8A 250V 0.362 9.20mm
PDF
/
Inventory: 1078
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Tape & Reel (TR)
Published 2014
Series COMBICON MCV
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation Vertical

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
