1779226
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

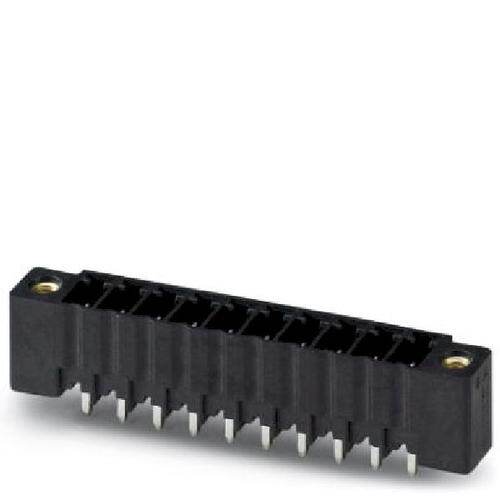

Pluggable Terminal Blocks 10 Pos 3.5mm pitch Through Hole Header
PDF
/
Inventory: 5594
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2014
Series COMBICON MCV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
