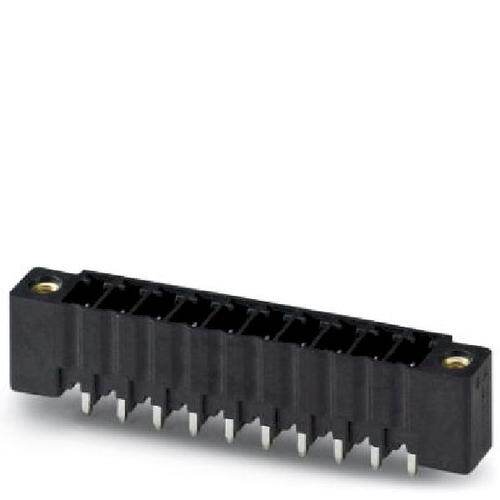

1779187
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 3.5mm pitch Through Hole Header
PDF
/
Inventory: 1093
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2014
Series COMBICON MCV
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 8
Safety Approval CUL; EAC; UL; VDE
Header Orientation Vertical
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
