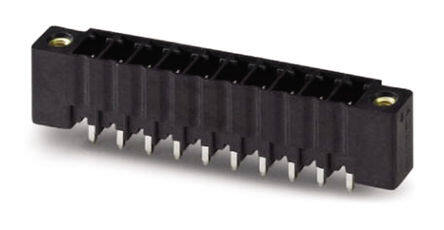

1779103
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.67
Unit Price: USD $2.6664
≥1 USD $2.6664
Inventory: 4708
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2014
Series COMBICON MCV
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Depth 7.25mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Contact Tail Length 0.102 2.60mm
Max Current Rating 8A
Number of Levels 1
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation Vertical
Number of Positions Per Level 4
Dimensions
Length 24.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
