1778874
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

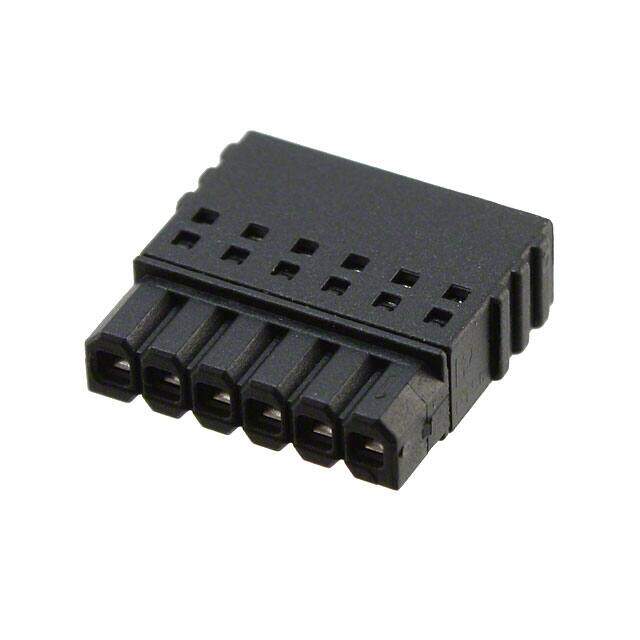

TERM BLOCK PLUG 6POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.7512
≥1 USD $1.7512
Inventory: 591
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 16.1mm
Length 15mm
Height 5mm
Technical
Wire Strip Length 6mm
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 20-26 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 5A
Number of Levels 1
Max Current Rating 6A
Voltage 150V
Approval Agency UL
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 6A
Insulation Height 0.197 5.00mm
Depth 15mm
Orientation Straight
Pitch 0.098 2.50mm
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTSM
Published 2010
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
