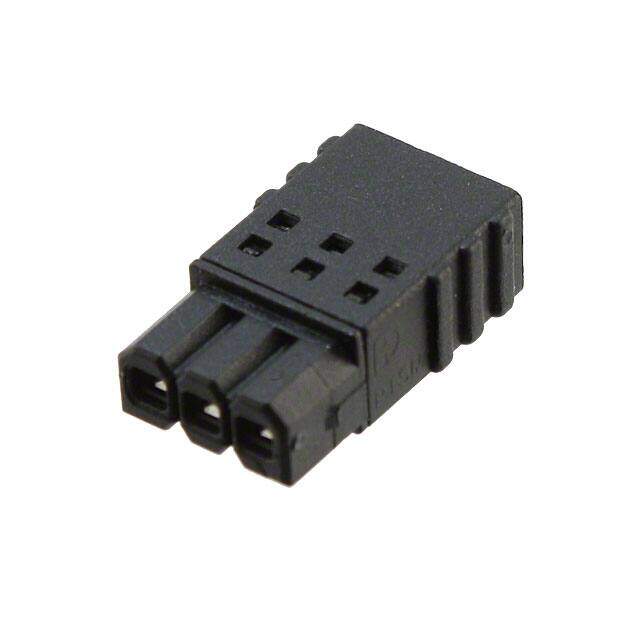

1778845 image
Favorite
1778845 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $1.2
Unit Price: USD $1.1968
≥1 USD $1.1968
≥10 USD $1.14752
≥100 USD $1.097712
≥500 USD $1.067792
≥1000 USD $0.99792
≥3000 USD $0.918086
Inventory: 1090
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 8.6mm
Length 15mm
Height 5mm

Technical

Wire Strip Length 6mm
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 20-26 AWG
Number of Poles 3
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 5A
Number of Levels 1
Max Current Rating 6A
Voltage 150V
Approval Agency UL
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 6A
Insulation Height 0.197 5.00mm
Orientation Straight
Pitch 0.098 2.50mm
Voltage - Rated 160V
Gender Male
Color Black
Number of Positions 3
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTSM
Published 2010
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
