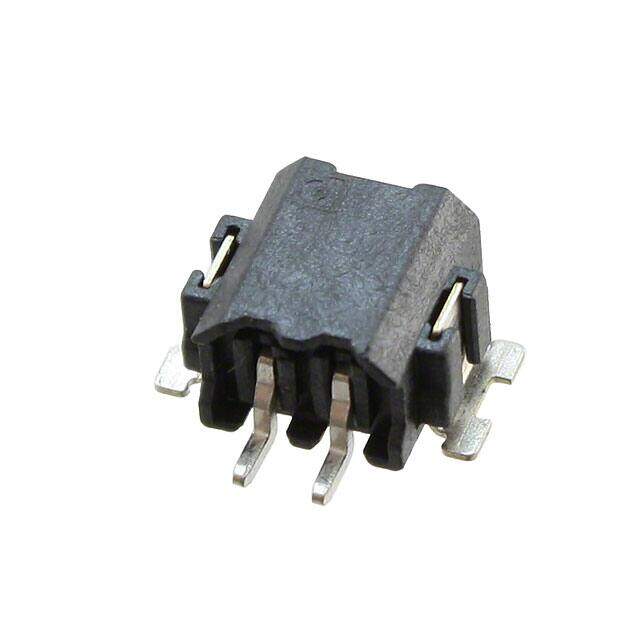

1778764 image
Favorite
1778764 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.484
≥1 USD $0.484
Inventory: 1191
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Tape & Reel (TR)
Published 2011
Series COMBICON PTSM
Feature Board Guide, Pick and Place Cap, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 160V
HTS Code 8536.90.40.00
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 7.5mm
Insulation Height 0.197 5.00mm
Current Rating 6A
Termination Style Solder
Approval Agency UL
Voltage 150V
Max Current Rating 6A
Number of Levels 1
Current 6A
Number of Poles 2
Number of Decks 1
Number of Ways 2
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Height 5mm
Length 7.5mm
Width 6.7mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
