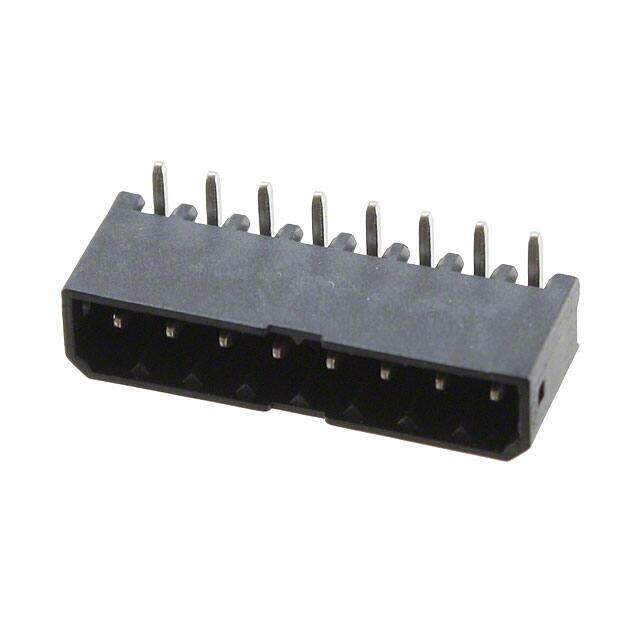

1778683 image
Favorite
1778683 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 8POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.2936
≥1 USD $1.2936
Inventory: 3625
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 21.7mm
Length 7.5mm
Height 5mm

Technical

Header Orientation 90°, Right Angle
Contact Mating Finish Tin
Number of Poles 8
Current 6A
Number of Levels 1
Contact Tail Length 0.083 2.10mm
Voltage 150V
Approval Agency UL
Termination Style Solder
Current Rating 6A
Insulation Height 0.197 5.00mm
Orientation Horizontal, Vertical
Pitch 0.098 2.50mm
Voltage - Rated 160V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place Cap
Series COMBICON PTSM
Published 2011
Packaging Tape & Reel (TR)

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
