1778654
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

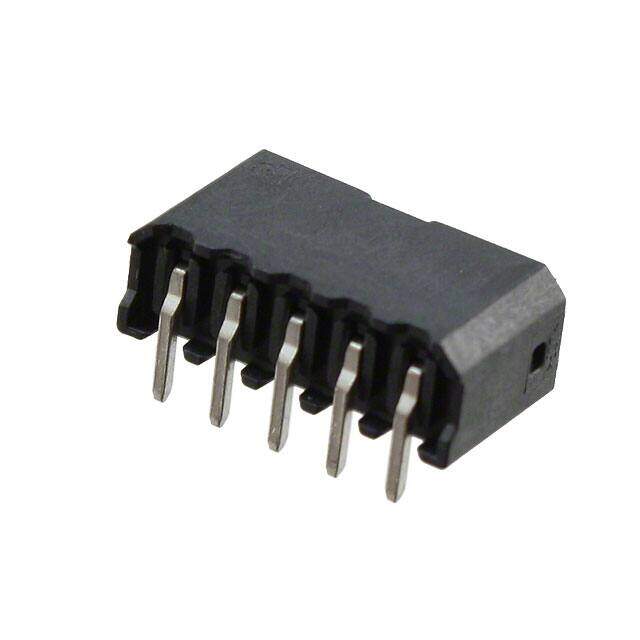

TERM BLOCK HDR 5POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
Inventory: 1477
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 14.2mm
Length 7.5mm
Height 5mm
Technical
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Current 6A
Number of Levels 1
Max Current Rating 6A
Contact Tail Length 0.083 2.10mm
Voltage 150V
Approval Agency UL
Termination Style Solder
Current Rating 6A
Reach Compliance Code unknown
Insulation Height 0.197 5.00mm
Depth 7.5mm
Orientation Right Angle
Pitch 0.098 2.50mm
Voltage - Rated 160V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place Cap
Series COMBICON PTSM
Published 2011
Packaging Tape & Reel (TR)
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
