1778641
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

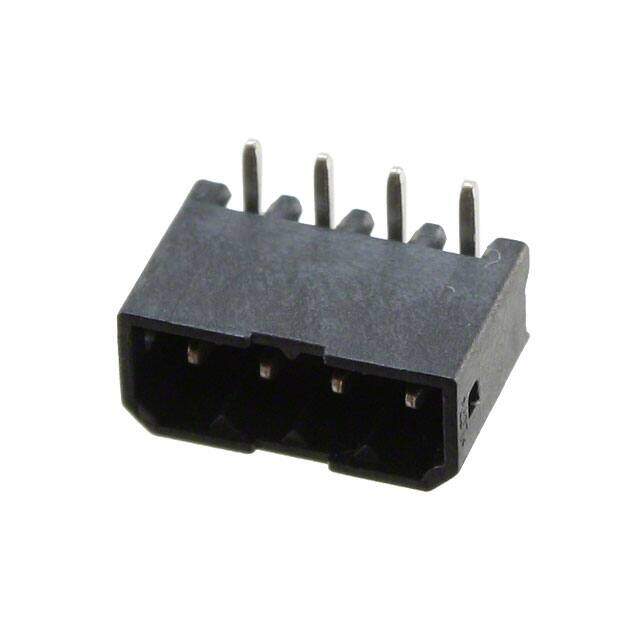

TERM BLOCK HDR 4POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Surface Mount, Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2010
Series COMBICON PTSM
Feature Pick and Place Cap
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 160V
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 7.5mm
Insulation Height 0.197 5.00mm
Current Rating 6A
Termination Style Solder
Approval Agency UL
Voltage 150V
Contact Tail Length 0.083 2.10mm
Max Current Rating 6A
Number of Levels 1
Current 6A
Number of Poles 4
Header Orientation 90°, Right Angle
Dimensions
Height 5.1mm
Length 7.5mm
Width 11.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
