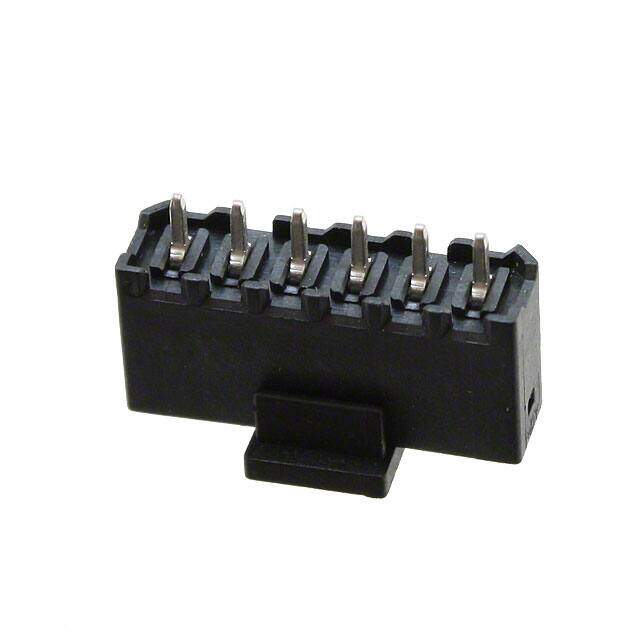

1778599
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.9592
≥1 USD $0.9592
Inventory: 2921
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2011
Series COMBICON PTSM
Feature Pick and Place Cap
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature -40°C
Color Black
Voltage - Rated 160V
Pitch 0.098 2.50mm
Depth 5mm
Insulation Height 0.295 7.50mm
Reach Compliance Code unknown
Current Rating 6A
Termination Style Solder
Approval Agency UL
Voltage 150V
Contact Tail Length 0.083 2.10mm
Max Current Rating 6A
Number of Levels 1
Current 6A
Number of Poles 6
Header Orientation Vertical
Dimensions
Height 7.65mm
Length 5mm
Width 16.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
