1778586
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

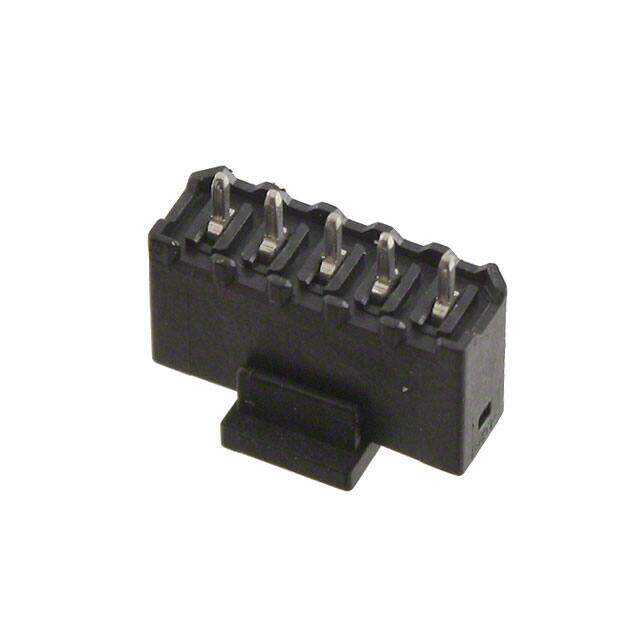

TERM BLOCK HDR 5POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
Inventory: 1458
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2011
Series COMBICON PTSM
Feature Pick and Place Cap
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Gender Male
Voltage - Rated 160V
Pitch 0.098 2.50mm
Depth 5mm
Insulation Height 0.295 7.50mm
Current Rating 6A
Termination Style Solder
Approval Agency UL
Voltage 150V
Contact Tail Length 0.083 2.10mm
Max Current Rating 6A
Number of Levels 1
Current 6A
Contact Mating Finish Tin
Header Orientation Vertical
Number of Positions Per Level 5
Dimensions
Height 7.5mm
Length 5mm
Width 14.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
