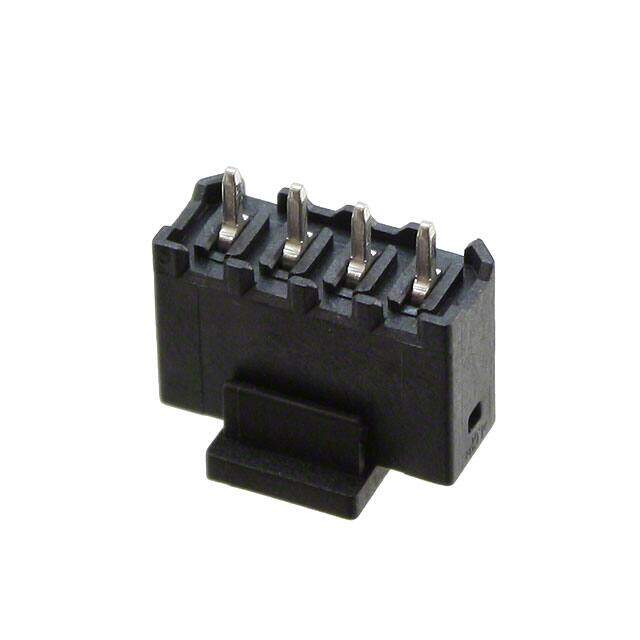

1778573 image
Favorite
1778573 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 2.5MM
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
Inventory: 1195
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Lead Free Lead Free

Dimensions

Width 11.7mm
Length 5mm
Height 7.5mm

Technical

Number of Positions Per Level 4
Header Orientation Vertical
Current 6A
Number of Levels 1
Max Current Rating 6A
Contact Tail Length 0.083 2.10mm
Voltage 150V
Approval Agency UL
Termination Style Solder
Current Rating 6A
Insulation Height 0.295 7.50mm
Depth 5mm
Pitch 0.098 2.50mm
Voltage - Rated 160V
Gender Male
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place Cap
Series COMBICON PTSM
Published 2010
Packaging Tape & Reel (TR)

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
