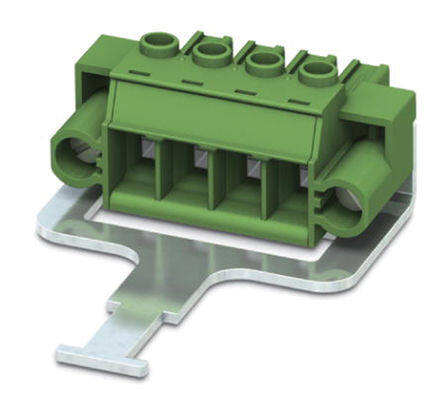

1778201 image
Favorite
1778201 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 7 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $62.93
Unit Price: USD $62.92861
≥1 USD $62.92861
≥200 USD $25.109213
≥500 USD $24.270269
≥1000 USD $23.855393
Inventory: 1171
Minimum: 1
-
+

Technical Details

Technical

Current 41A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Torque - Screw 0.7-0.8 Nm (6.2-7.1 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Number of Positions Per Level 7
Screw Size M3
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Reach Compliance Code not_compliant
Depth 21.2mm
Pitch 0.300 7.62mm
Voltage - Rated 1kV
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Strain Relief
Series COMBICON PC
Published 2011
Packaging Bulk

Dimensions

Height 68.56mm
Length 35.5mm
Width 77.8mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
