1778124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

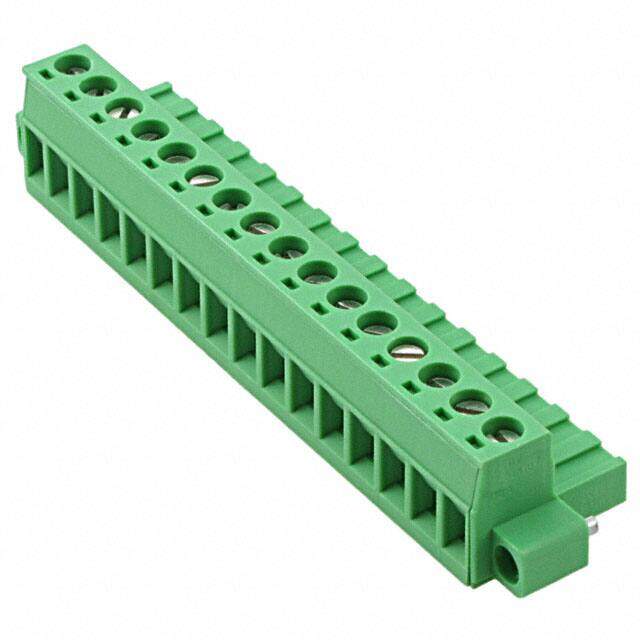

Pluggable Terminal Blocks 16 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $15.26
Unit Price: USD $15.2592
≥1 USD $15.2592
≥10 USD $14.84736
≥100 USD $13.87584
≥500 USD $12.765808
≥1000 USD $12.5268
Inventory: 253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Free Hanging, Panel, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 128.999997g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTB
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, VDE, cULus
Number of Contacts 16
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 16
Safety Approval CB; CSA; CUL; DNV; EAC; GL; RS
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Screw Size M3
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Dimensions
Height 18.2mm
Length 91.29mm
Width 91.29mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
