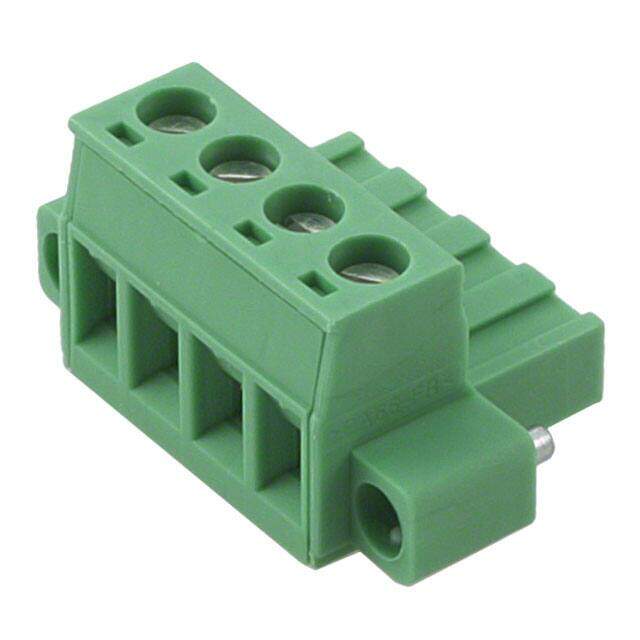

1778001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $3.99
Unit Price: USD $3.9864
≥1 USD $3.9864
≥10 USD $3.81568
≥100 USD $3.71184
≥500 USD $3.46896
≥1000 USD $3.191443
≥3000 USD $3.131709
Inventory: 2761
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 30.33mm
Length 15mm
Height 18.2mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval CB; CCA; CSA; CUL; EAC; GL
Number of Ways 4
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.591 15.00mm
Depth 15mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MSTB
Published 2010
Packaging Bulk
Physical
Weight 128.999997g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel, Plug-In
Contact Material Copper
Supply Chain
Factory Lead Time 6 Weeks
