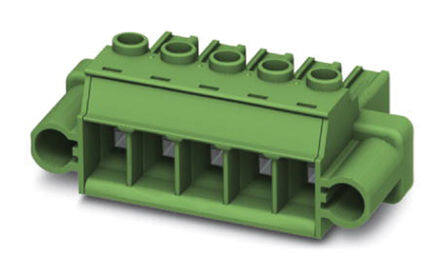

1777927
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $49.26
Unit Price: USD $49.261321
≥1 USD $49.261321
≥200 USD $19.655426
≥500 USD $18.998976
≥1000 USD $18.67469
Inventory: 6235
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON PC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Depth 19.7mm
Insulation Height 0.776 19.70mm
Reach Compliance Code not_compliant
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 41A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 8-24 AWG
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Number of Positions Per Level 11
Screw Size M3
Dimensions
Length 35.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
