1777914
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

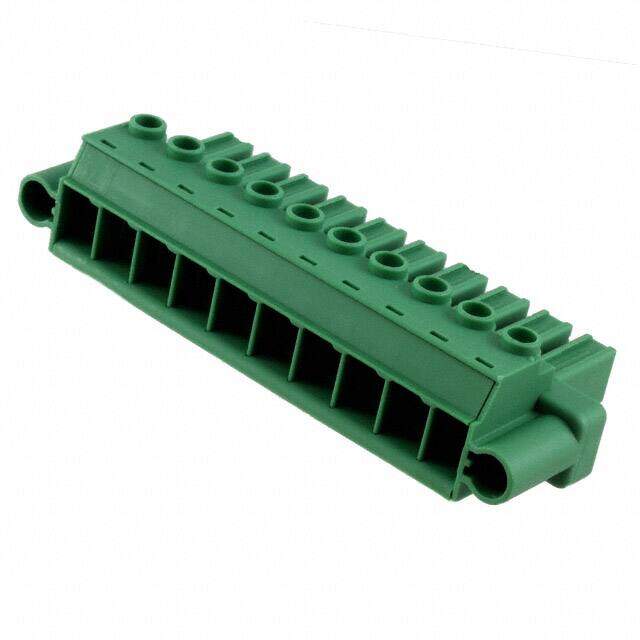

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $18.52
Unit Price: USD $18.5152
≥1 USD $18.5152
≥10 USD $18.00832
≥100 USD $16.83
≥500 USD $15.483688
≥1000 USD $14.305526
≥3000 USD $13.632362
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON PC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Depth 19.7mm
Insulation Height 0.776 19.70mm
Reach Compliance Code not_compliant
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 41A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry 180┬?
Wire Gauge or Range - mm┬▓ 0.2-10mm2
Wire Strip Length 10mm
Number of Positions Per Level 10
Screw Size M3
Dimensions
Height 35.3mm
Length 35.5mm
Width 91.43mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Alternative Model
