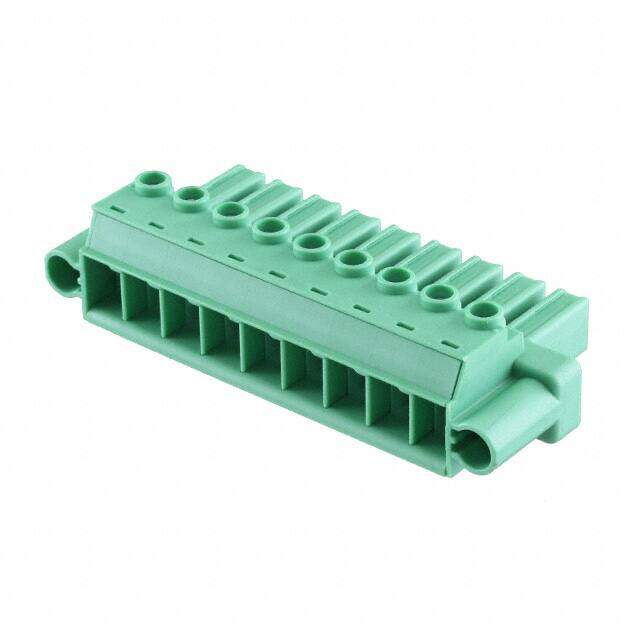

1777901 image
Favorite
1777901 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $12.45
Unit Price: USD $12.452
≥1 USD $12.452
Inventory: 109
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 35.5mm

Technical

Screw Size M3
Number of Positions Per Level 9
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Wire Gauge or Range - AWG 8-24 AWG
Voltage - UL 600V
Contact Mating Finish Tin
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 41A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Reach Compliance Code not_compliant
Insulation Height 0.776 19.70mm
Depth 19.7mm
Pitch 0.300 7.62mm
Voltage - Rated 1kV
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON PC
Published 2014
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
