RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

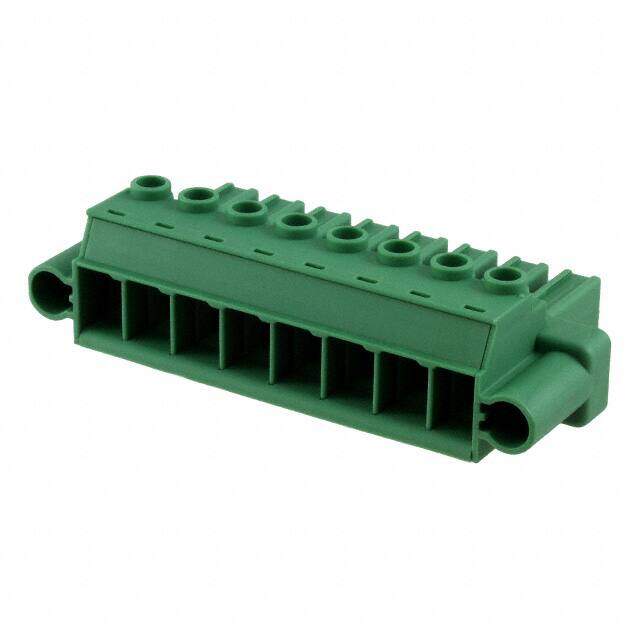

Description Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $10.54
Unit Price: USD $10.5424
≥1 USD $10.5424
Inventory: 96
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2013
Series COMBICON PC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.300 7.62mm
Orientation Straight
Depth 35.3mm
Insulation Height 0.776 19.70mm
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Max Supply Voltage 1kV
Max Current Rating 41A
Number of Levels 1
Current 41A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 8-24 AWG
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Number of Ways 8
Safety Approval CUL; GOST; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Screw Size M3
Wire Cross Section 6 mm2

Dimensions

Height 35.3mm
Length 19.7mm
Width 76.19mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
