1777862
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

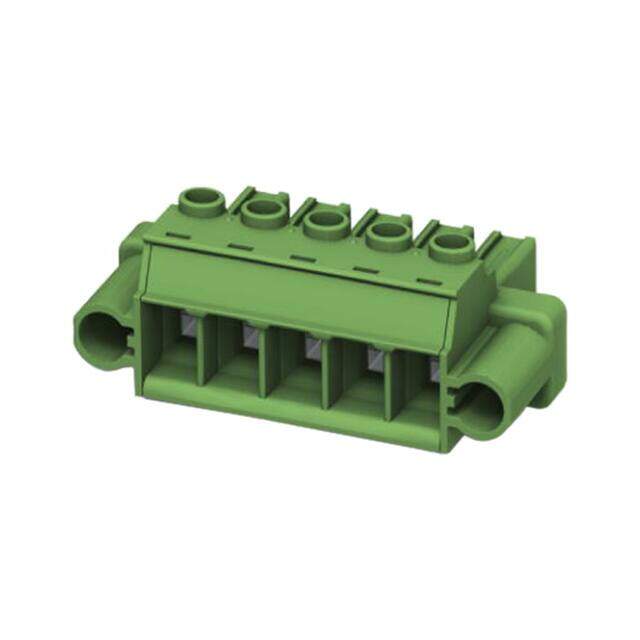

Pluggable Terminal Blocks 5 Pos 7.62mm pitch Plug 24-8 AWG Screw
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.935978
≥1 USD $9.935978
≥10 USD $9.37357
≥100 USD $8.842986
≥500 USD $8.342439
≥1000 USD $7.870226
Inventory: 5518
Minimum: 1
-
+
Technical Details
Technical
Series COMBICON PC
Published 2014
Packaging Bulk
Wire Cross Section 6 mm2
Screw Size M3
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval CUL; GOST; UL
Number of Ways 5
Torque - Screw 0.5-0.8 Nm (4.4-7.1 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 8 AWG
Current 41A
Number of Levels 1
Max Current Rating 41A
Voltage 600V
Number of Contacts 5
Termination Style Screw - Rising Cage Clamp
Current Rating 41A
Insulation Height 0.776 19.70mm
Depth 19.7mm
Orientation Straight
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Retention Latches (Non-Wire Side)
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 35.3mm
Length 35.5mm
Height 19.7mm
